YASKAWA CIPR-GA70T4038BBAA
Mei 06, 2024 • •
Overview

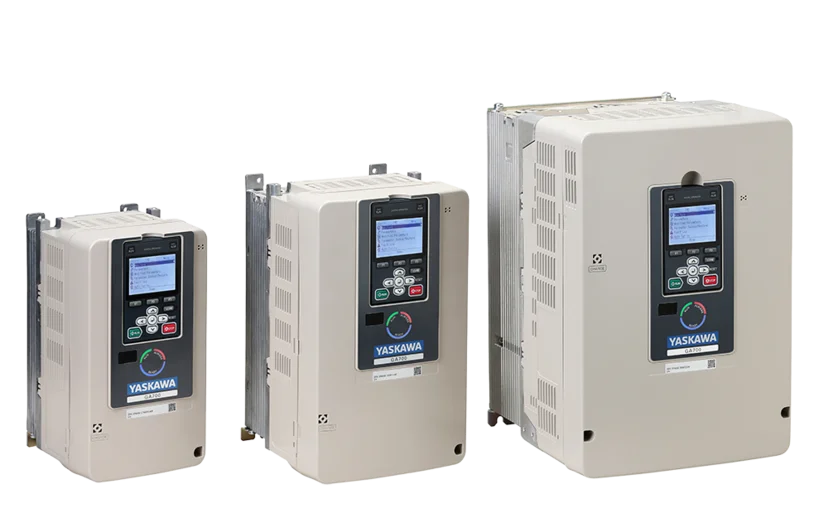

GA700 is the new versatile Yaskawa AC drive for industrial applications. Great flexibility, small dimensions, and built-in features allow an effortless integration into nearly any application. Smart tools like the Startup Wizard, data logging, the DriveWizard Mobile app, and many more assist during setup and troubleshooting to save valuable time.
Download
Applications
- Conveyor (HD)
- Compressor (HD)
- Extruder (HD)
- Press (HD)
- Crane (HD)
- All Industrial Machines
- Fan (ND)
- Pump (ND)
Technical Details
- Input power supply
- 400 V
- Rated output current (HD)
- 31 A
- Rated output current (ND)
- 38 A
- Overload Tolerance (ND)
- 110% for 60 s
- Overload Tolerance (HD)
- 150% for 60 s
- Max. applicable motor power (HD)
- 15 kW
- Max. applicable motor power (ND)
- 18.5 kW
- Input power phases
- 3-phase
- EMC filter
- ✓ Yes
- Motor type
- Synchronous reluctance motor, Permanent magnet motor, Induction motor
- Encoder
- x No
- Standards compliance
- cUL, CE, RoHS, UL, UKCA
- Regenerative Capacity
- x No
- Ambient Temperature (Min)
- -10 °C
- Ambient Temperature (Max)
- 50 °C
- Ambient Temperature (Max) with Derating
- 60 °C
- Max. Humidity (non-condensing)
- 95 %
- Max. Altitude (without Derating)
- 1000 m
- Max. Altitude (with Derating)
- 4000 m
- Height
- 300 mm
- Width
- 180 mm
- Depth
- 202 mm
- Weight
- 5.5 kg
- Cooling method
- Air cooling
- Enclosure
- IP20
- Environmental Specifications
- Standard
- Analog Input
- 3
- Analog Output
- 2
- Digital Input
- 8
- Digital Output
- 4
- Safety Level
- SIL3
- Performance Level
- PL e
- Torque Control
- Standard
- Braking transistor
- ✓ Built-in
- Motor Thermal Protection
- Standard
- Max Output Frequency
- 590 Hz
